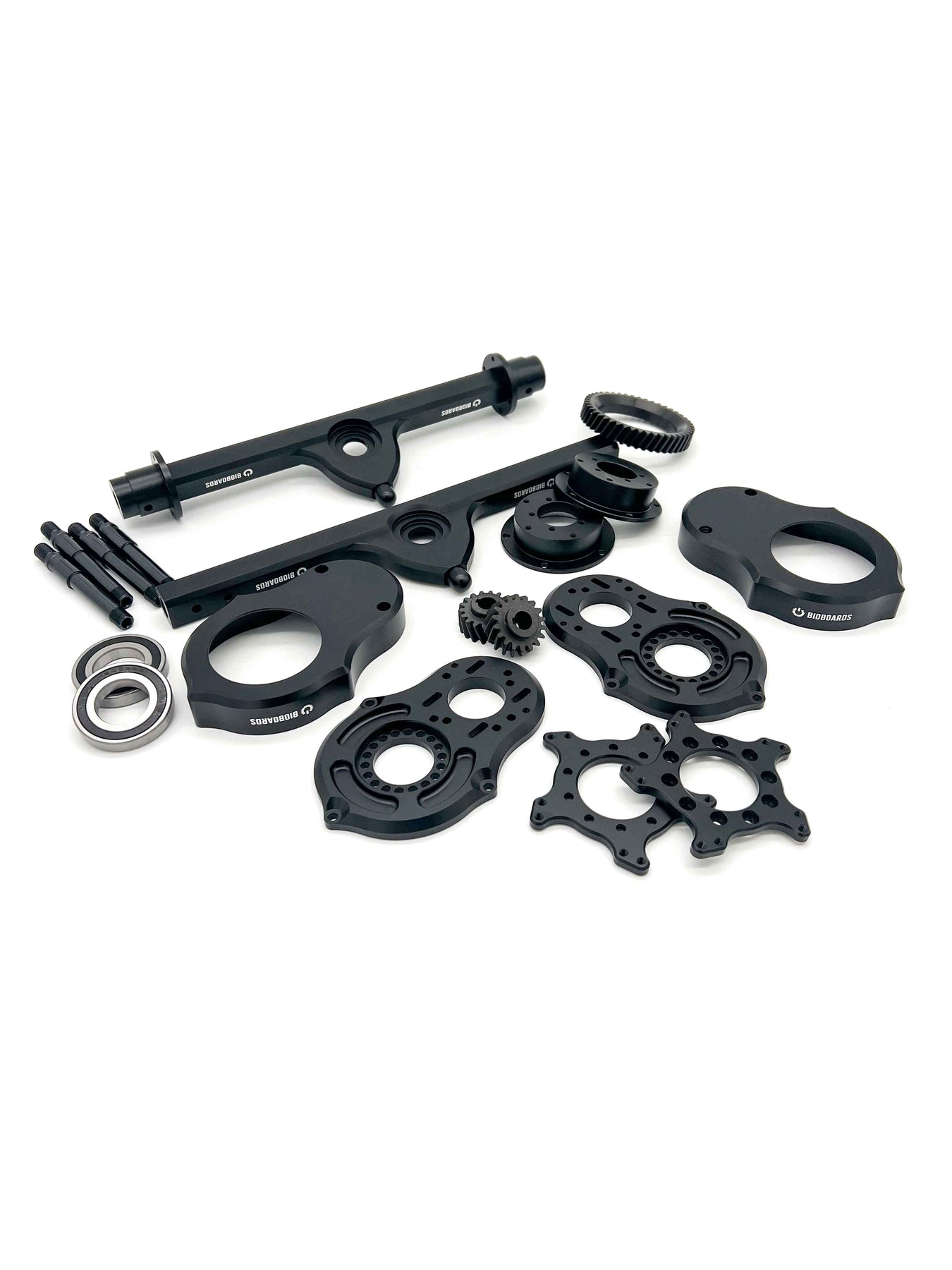

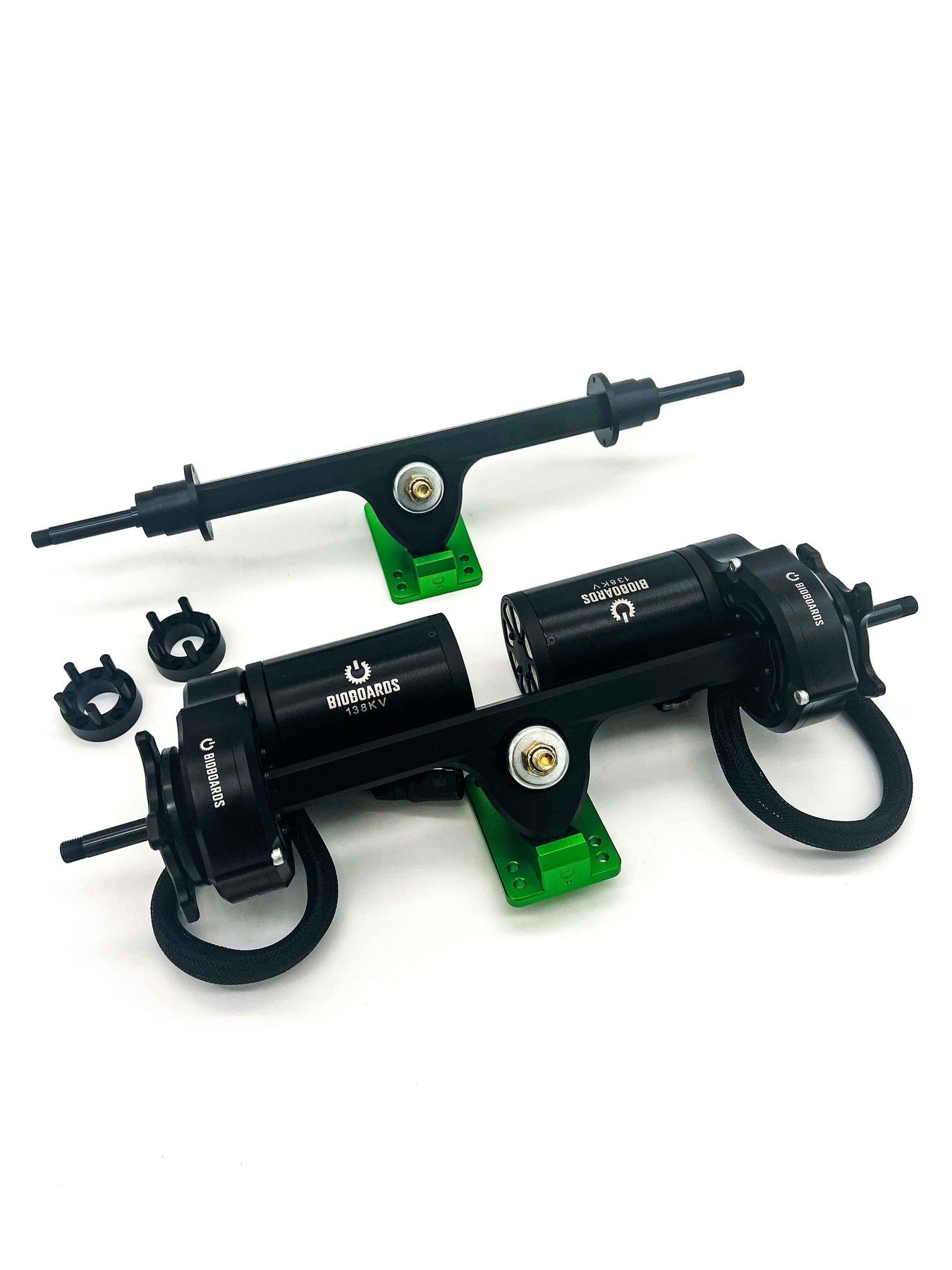

Bioboards gear drive kit is the geardrive kit with the most choices and possibilities for your DIY skateboard. It is made of high-quality aluminum and helical pinions in steel. Despite offering a wide range of options and high quality, it comes at a great price!
Please note that the channel baseplate is not ready yet. Any order with channel truck/hanger/baseplate will ship as soon as the final version is ready. It is estimated to be ready in mid-July. We are still optimizing the baseplate design. We recommend you wait to order if you want the Bioboards Channel truck.
Orders with Abec adapters will ship end of June.
Orders with Matrix 3 adapter will ship end of June.
All other parts in stock! Will ship same week as order.
The hanger adapters are built-in, so there are no more loose geardrives on the hanger!
Supports Matrix 3 trucks for our customer that already has a Matrix 3 truck!
It has been used for over 2 years on Plutonium 2 and 2S without a single problem related to the geardrive and/or hanger.
Large selection of ratios, choose between 1:2.2, 1:2.6, 1:3, 1:3.5 and 1:4. All gears in steel with QPQ coating. Mod 1.5 helical gears. 1:4 version is made with Mod 1 helical.

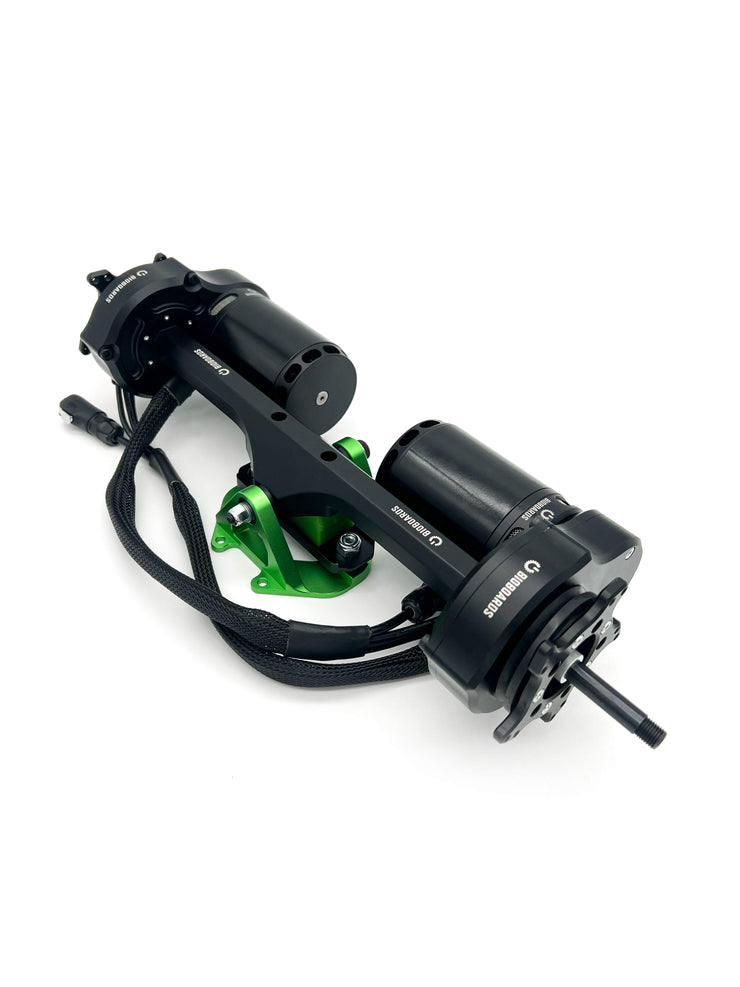

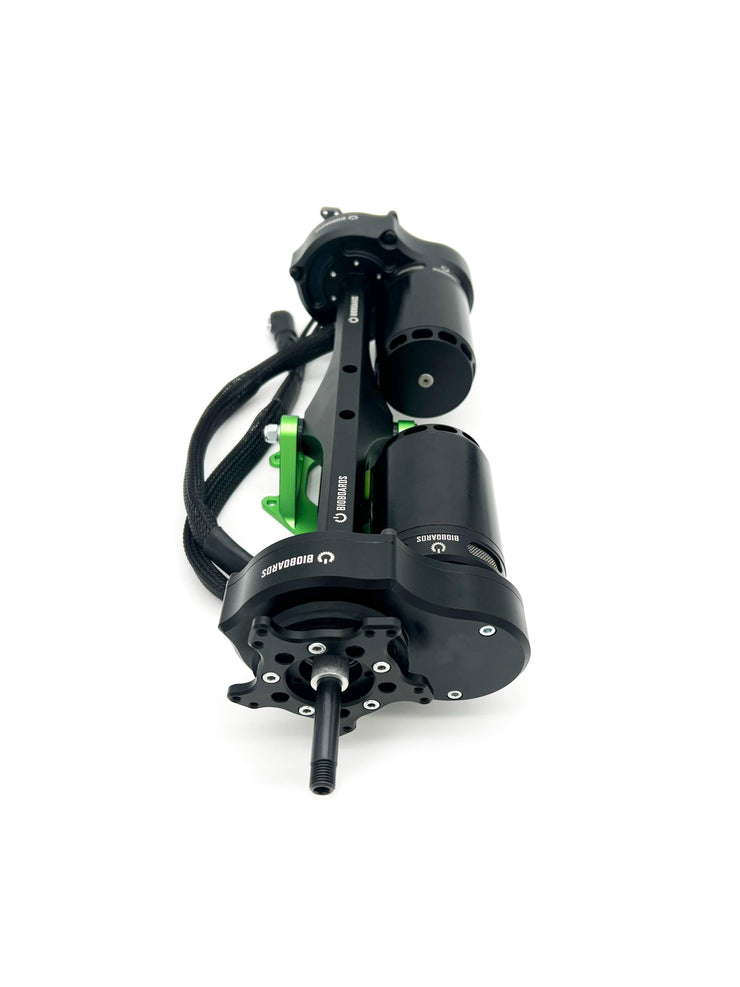

Geardrive can be installed for motors under board or rear at any angle.
Hanger shaft made in steel 10mm thick for ultimate durability. Possible to remove and install new shaft.

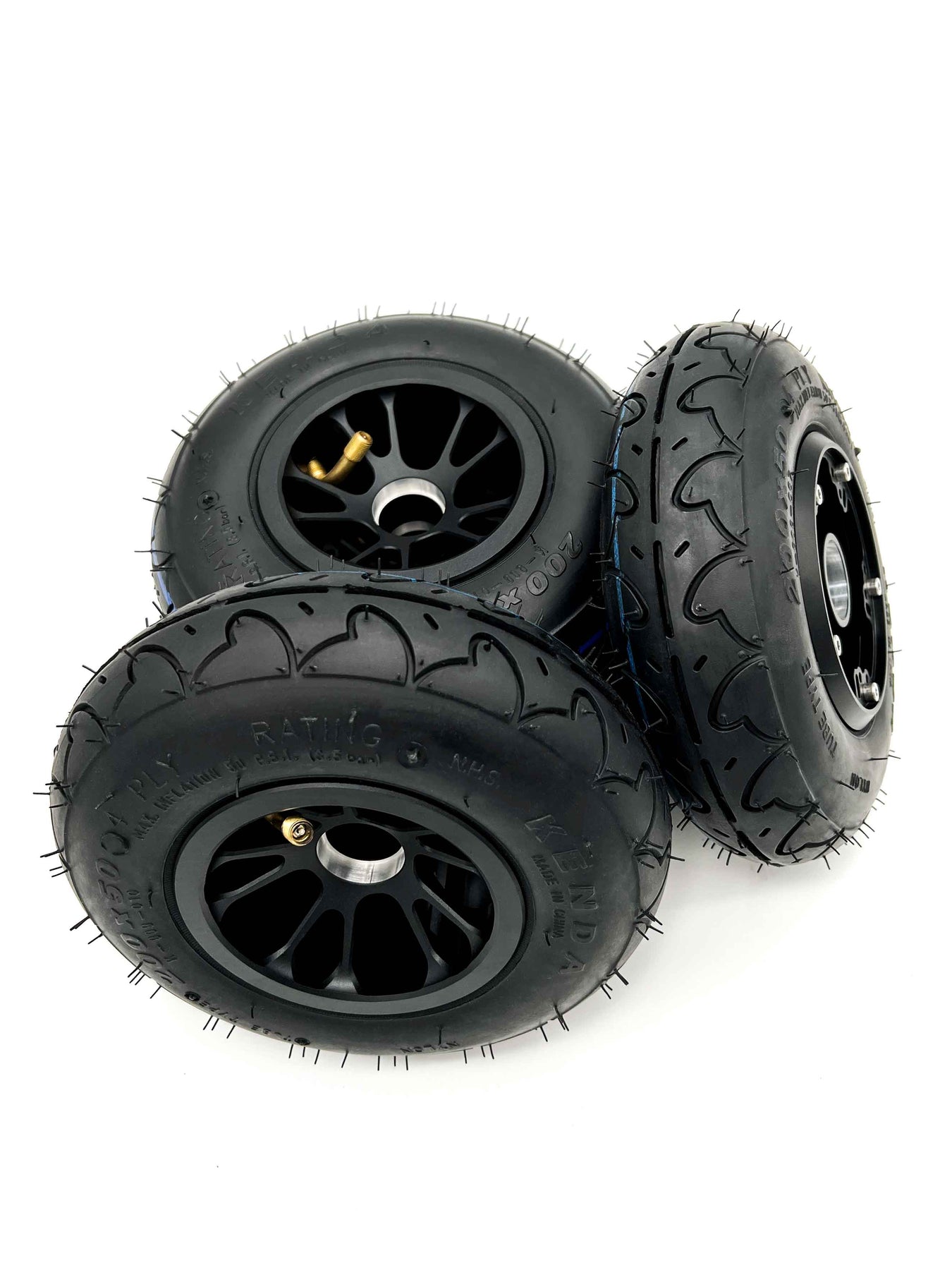

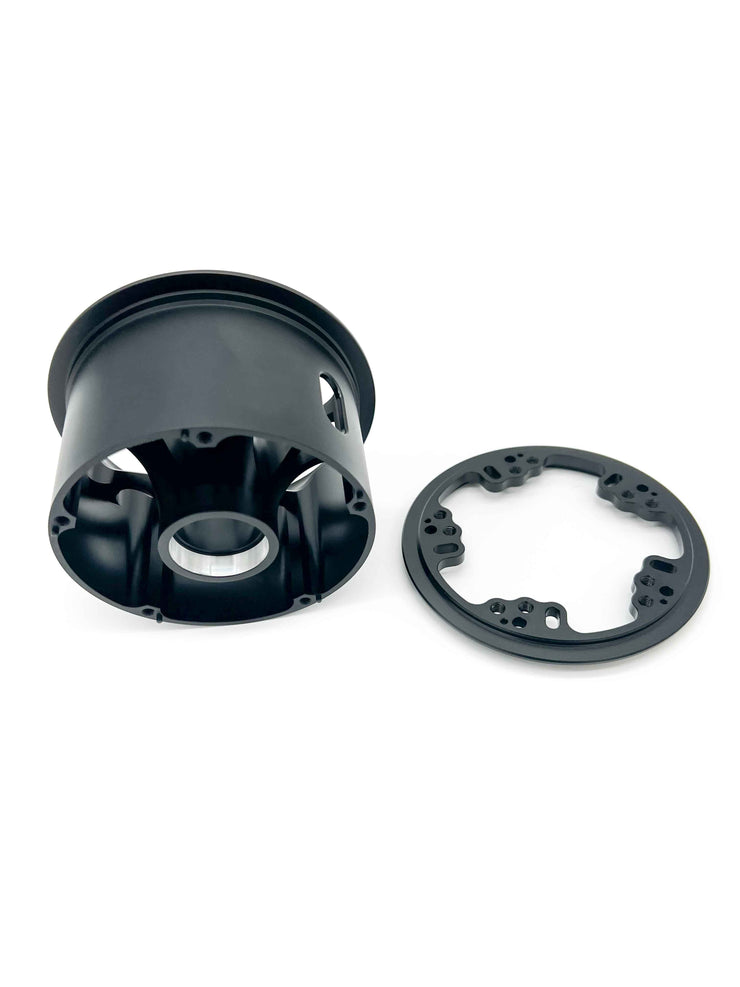

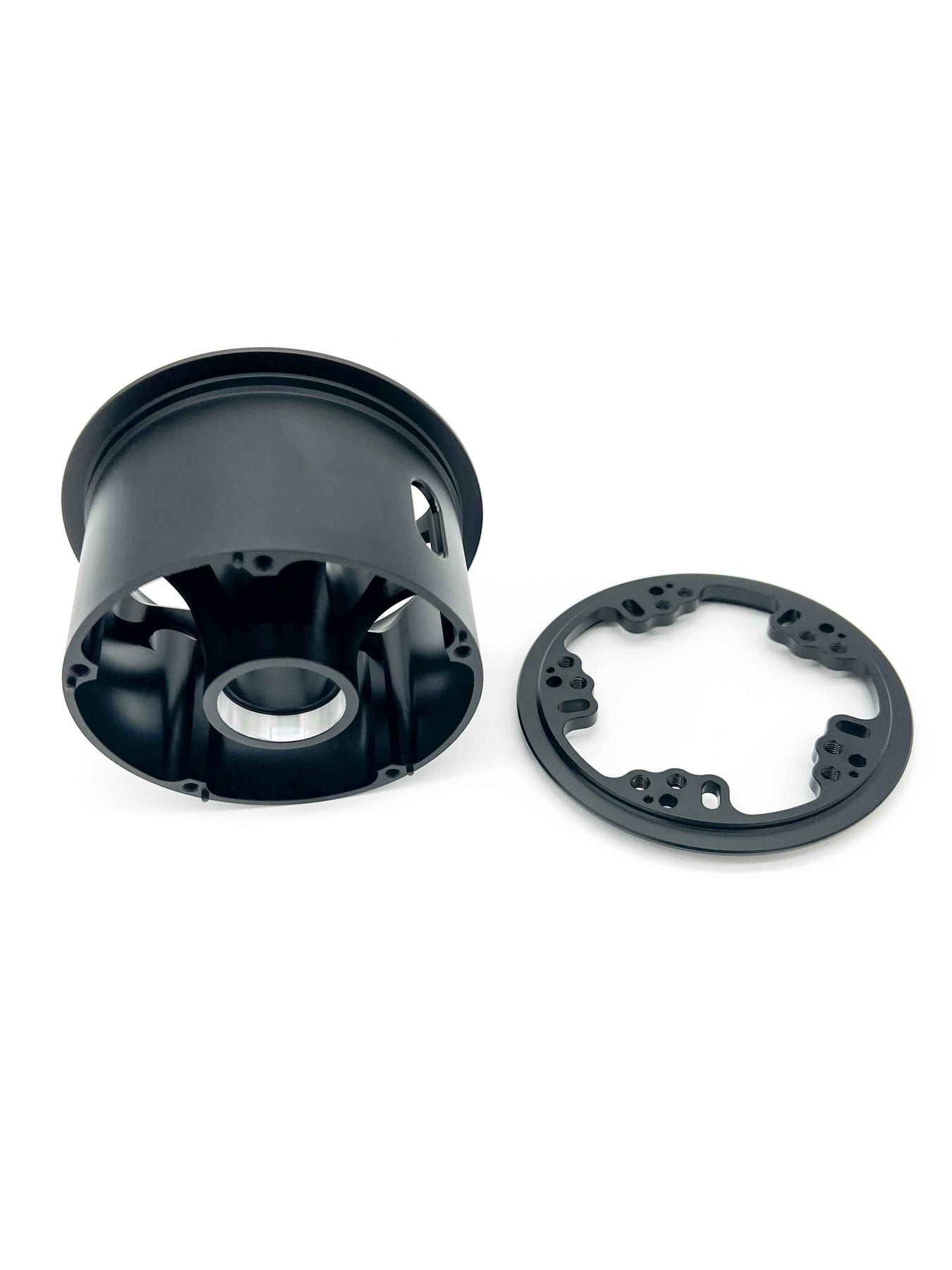

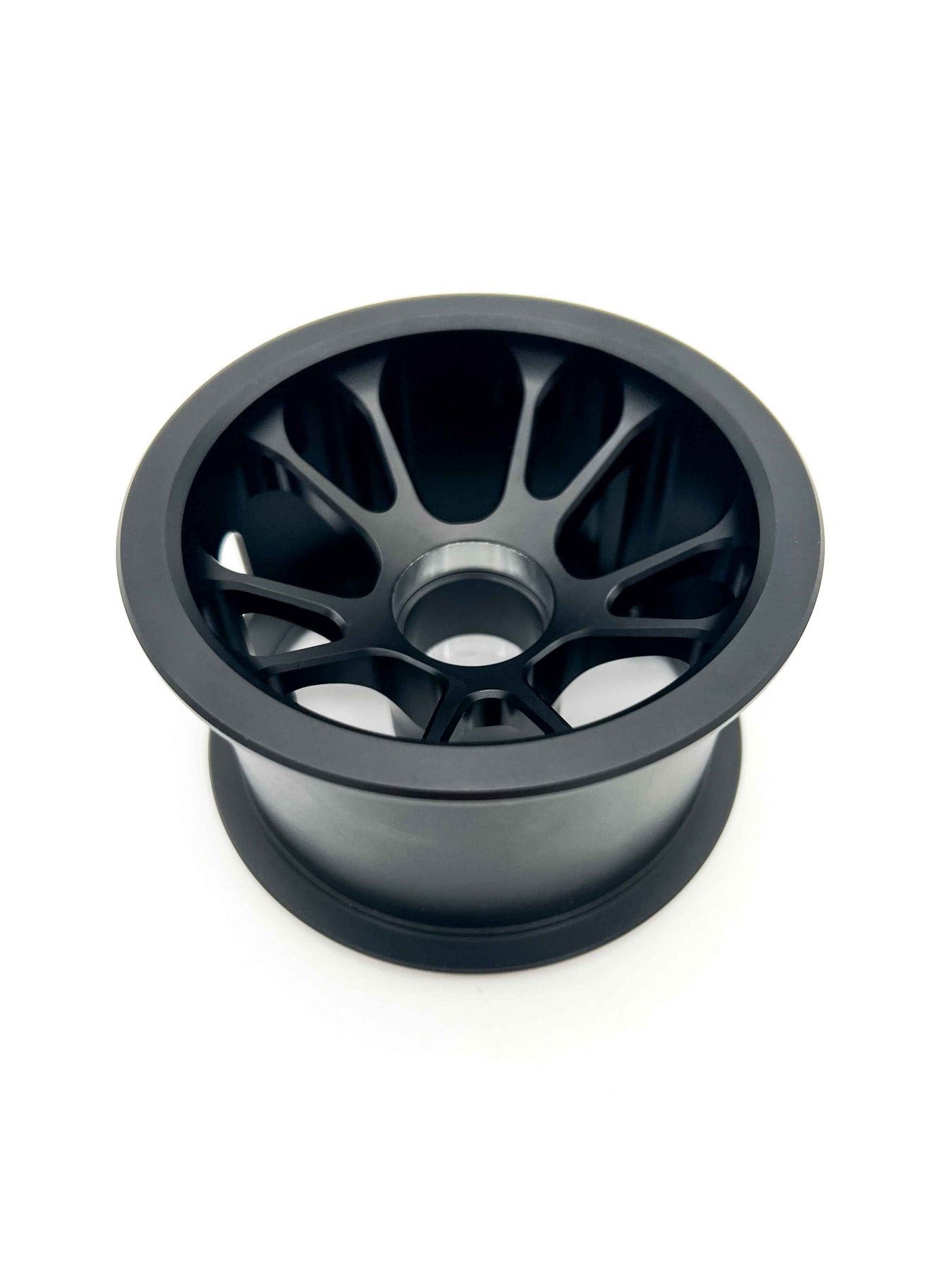

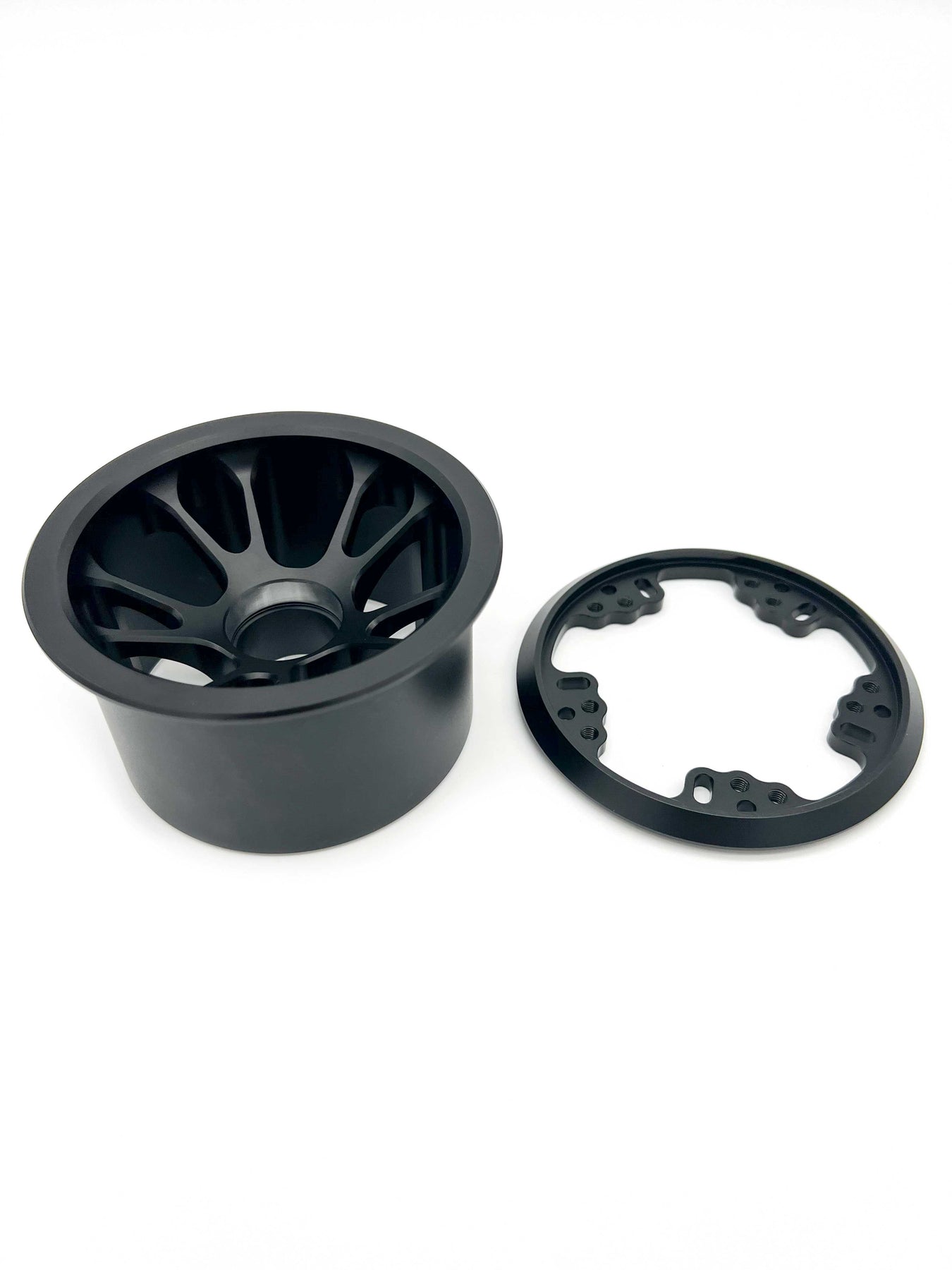

Kegel adapter and Abec adapter for any street wheels with kegel core or Abec core (recommended 110mm wheels for streetwheels). AT adapter that work with Bioboards rims , MOON Eros, MBS Rockstar, MBS Fivestar, Trampa Superstar and Trampa Megastar.
For motors with 44mm hole pattern (standard) and 10mm motor shaft.

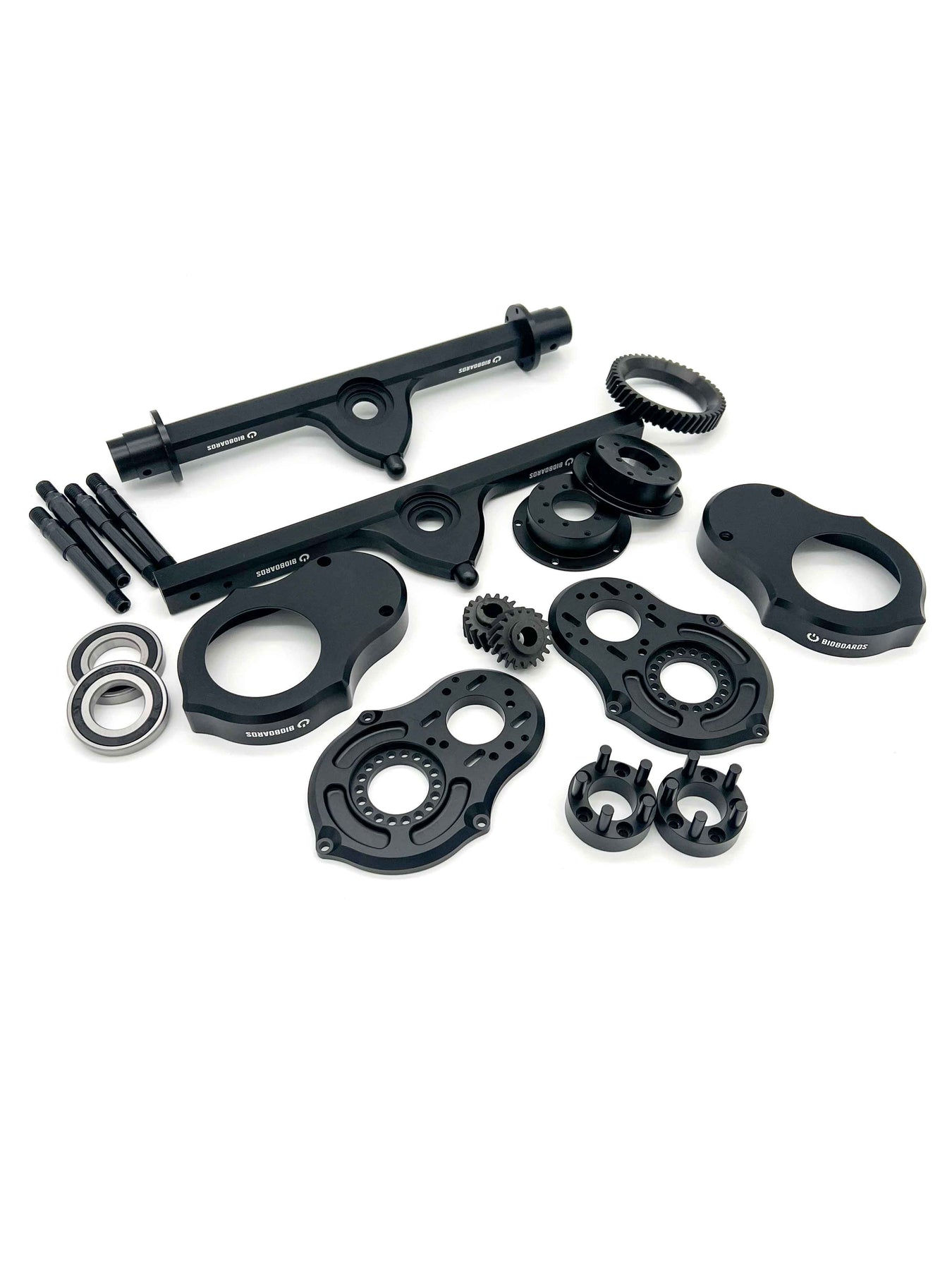

Wheel gear bearings included. All screws needed for assembly is included. Spacers needed for assembly included. Bearings for streetwheels included with TB110 wheels, Bearings for AT wheels included with Bioboards AT rims. Any 6-8" tyres work with the rims.
With 2WD 2 geardrives included, with 4WD 4 geardrives included.
We don´t recommend to order without any hanger since this geardrive system is designed to screw direct onto the hanger if you dont have a Matrix 3 truck that we have a adapter for.
If you choose the option to include a hanger and/or baseplate both for front and rear is included (2pc).

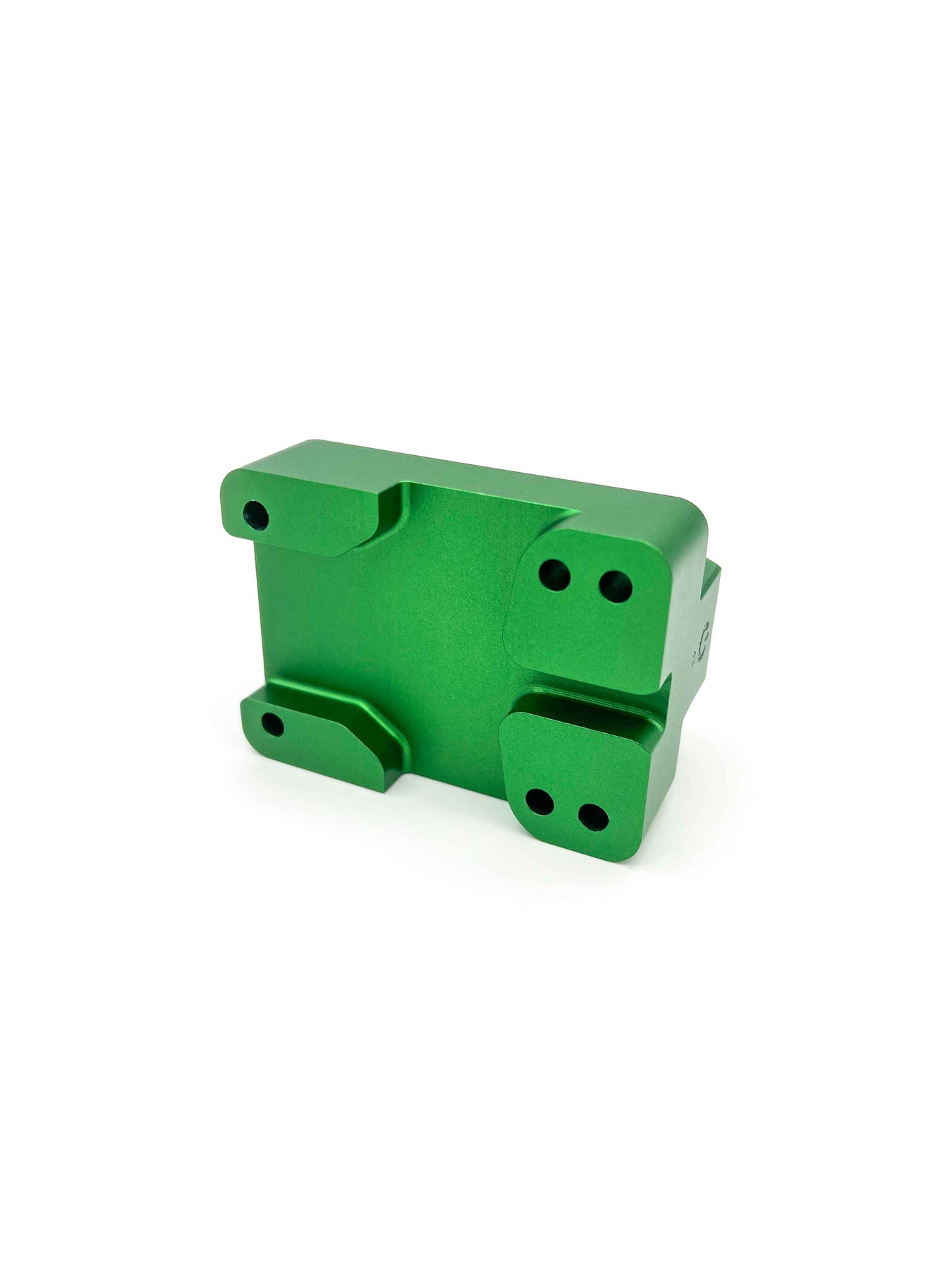

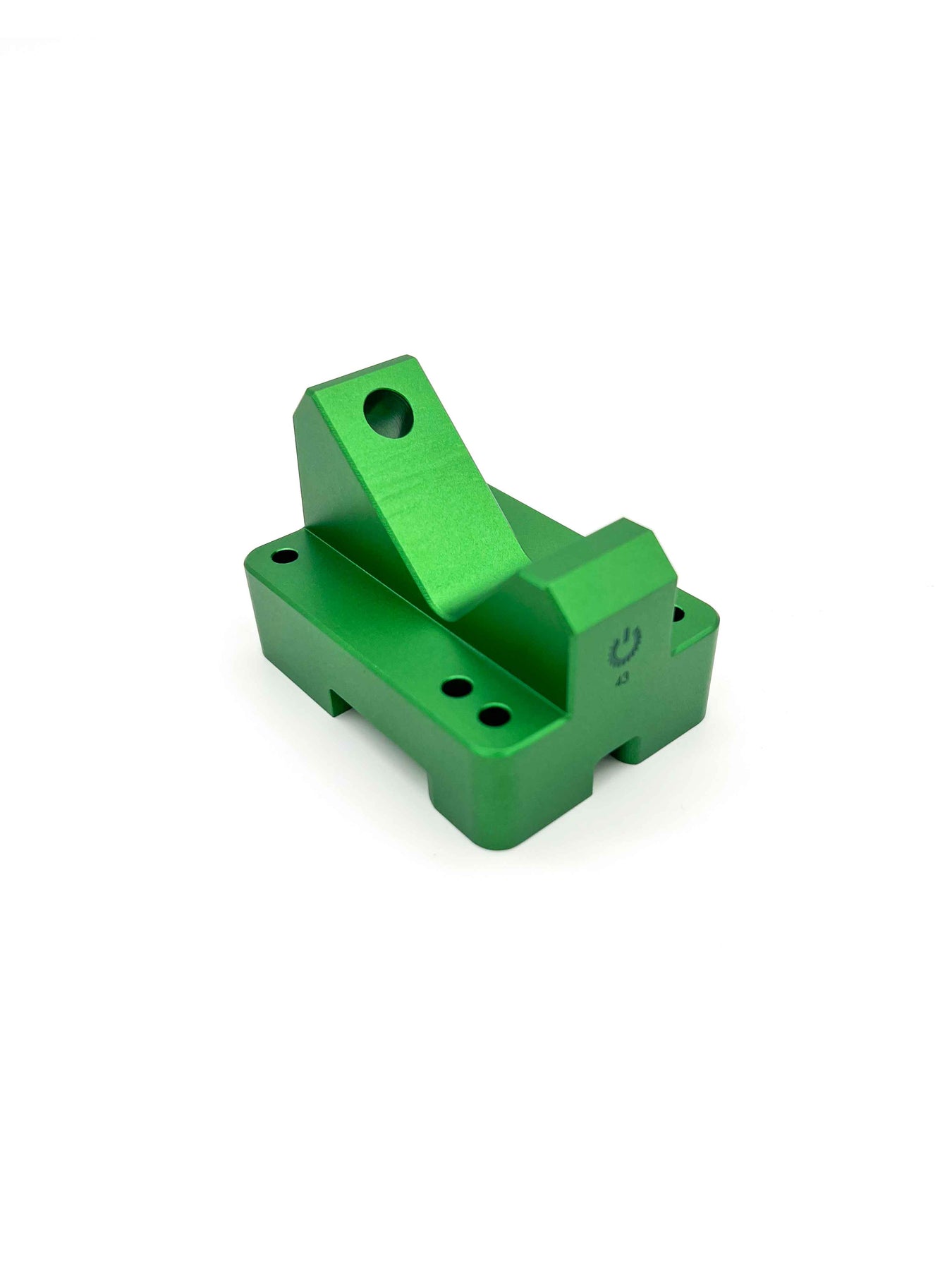

All aluminum parts are made of high-quality 6061-T6 aluminum except channel hangers which are made of 7075-T6 aluminum. All steel parts are made of high-quality 4140 steel QPQ coated and chemical blackening for lifelong lifetime. All parts are made with extreme precision with an extremely low tolerance for the best performance, quality and fit. All parts are anodized black except the baseplate which comes with green Pantone 802C anodizing.
It is very easy to assemble and has almost endless possibilities. Do you want a different gearing ratio in the future? Would you like to switch from RKP to Channel? Would you like to switch to street wheels instead? Everything is possible with Bioboards geardrive system. Keep the same gears forever instead of buying new ones every time you rebuild your board!
Install instructions: Download
3 years warrany, 5 years for the pinions! Motors not included.
